Given an Android 3x3 key lock screen and two integers m and n , where 1 ≤ m ≤ n ≤ 9, count the total number of unlock patterns of the Android lock screen, which consist of minimum of m keys and maximum n keys.
Rules for a valid pattern:
- Each pattern must connect at least m keys and at most n keys.
- All the keys must be distinct.
- If the line connecting two consecutive keys in the pattern passes through any other keys, the other keys must have previously selected in the pattern. No jumps through non selected key is allowed.
- The order of keys used matters.
Explanation:
| 1 | 2 | 3 | | 4 | 5 | 6 | | 7 | 8 | 9 |

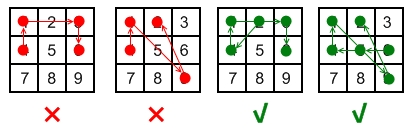

Invalid move:
4 - 1 - 3 - 6
Line 1 - 3 passes through key 2 which had not been selected in the pattern.
Invalid move:
4 - 1 - 9 - 2
Line 1 - 9 passes through key 5 which had not been selected in the pattern.
Valid move:
2 - 4 - 1 - 3 - 6
Line 1 - 3 is valid because it passes through key 2, which had been selected in the pattern
Valid move:
6 - 5 - 4 - 1 - 9 - 2
Line 1 - 9 is valid because it passes through key 5, which had been selected in the pattern.
Example:
Input: m = 1 , n = 1 Output: 9
1、题目描述¶
我们都知道安卓有个手势解锁的界面，是一个 3 x 3 的点所绘制出来的网格。
给你两个整数，分别为 m 和 n，其中 1 ≤ m ≤ n ≤ 9，那么请你统计一下有多少种解锁手势，是至少需要经过 m 个点，但是最多经过不超过 n 个点的。
先来了解下什么是一个有效的安卓解锁手势:
- 每一个解锁手势必须至少经过
m个点、最多经过n个点。 - 解锁手势里不能设置经过重复的点。
- 假如手势中有两个点是顺序经过的，那么这两个点的手势轨迹之间是绝对不能跨过任何未被经过的点。
- 经过点的顺序不同则表示为不同的解锁手势。
解释:
| 1 | 2 | 3 | | 4 | 5 | 6 | | 7 | 8 | 9 |
无效手势：4 - 1 - 3 - 6
连接点 1 和点 3 时经过了未被连接过的 2 号点。
无效手势：4 - 1 - 9 - 2
连接点 1 和点 9 时经过了未被连接过的 5 号点。
有效手势：2 - 4 - 1 - 3 - 6
连接点 1 和点 3 是有效的，因为虽然它经过了点 2 ，但是点 2 在该手势中之前已经被连过了。
有效手势：6 - 5 - 4 - 1 - 9 - 2
连接点 1 和点 9 是有效的，因为虽然它经过了按键 5 ，但是点 5 在该手势中之前已经被连过了。
示例:
输入: m = 1，n = 1 输出: 9
